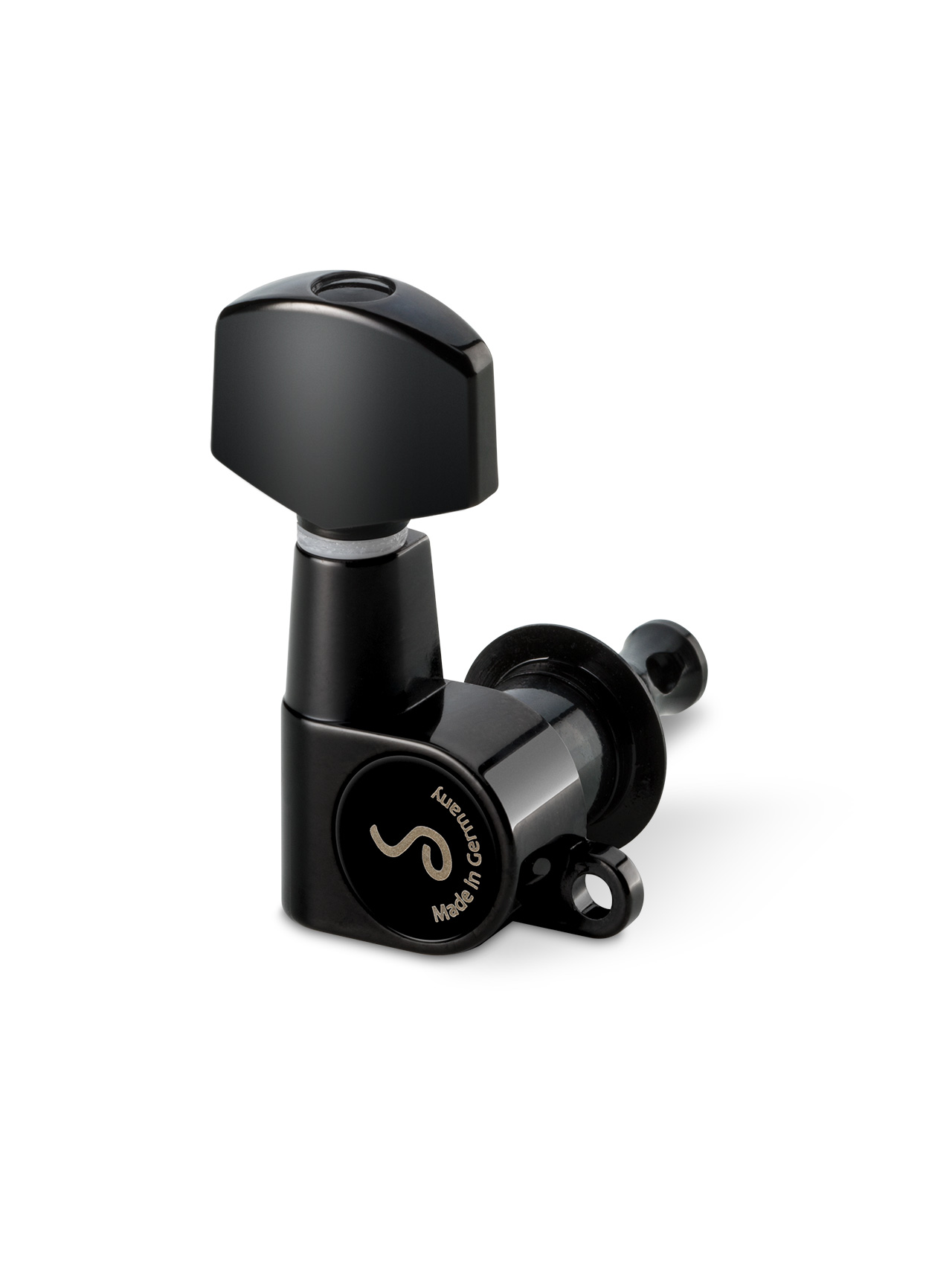

Schaller SC-10040423 M6 3+3 Siyah Elektro Gitar Burgu Takımı

Smaller and lighter version for Stratocaster™* models, small headstocks or 12-string guitars.

The perfect functionality of the M6 model, combined with the smaller and lighter design with a higher gear ratio 1:18. (*Stratocaster is a protected trademark owned by Fender Musical Instruments Corporation).

All sealed tuners are lubricated with Schaller special grease for lifetime maintenance-free service.

All parts are precision-crafted and surface-finished, the self-locking drive ensures an even, delicate and steady tuning.

All string posts are made of high-grade brass and fitted into the housing with utmost precision, ensuring the best possible tuning accuracy and wear resistance.

Instructions Toplocking screw

• Unscrew the knurled screw on the adjusting axis anti-clockwise until the clamping ball comes off.
• Now press the strings against the clamping ball. Under pressure, it recedes. You can now put the guitar string through the adjusting axis.
• Screw the knurled screw clockwise until it is hand tight. The string is now secured by the clamping ball.
• Now you can tune your strings.
• Now featuring a metric thread and a specially developed screw locking device, so you don`t lose the screw anymore!
• When loosening the screws, turn them anticlockwise until the string is tightened into position.
• When removing the connecing screws completely  from the shafts, simply take the connecting screw out of the shaft at threshold resistance.
• The Schaller M6 Toplocking with fine pitch thread and pull-off locking screw
• Fine Pitch Thread for better locking adjustment
• Our new Toplocking screw with fine pitch thread allows the screw to be turned more precisely and the locking torque to be adjusted more accurately.
• New pull-off mechanism that makes pulling off as easy as putting back on
• To prevent the toplocking screw from coming off and getting lost in the process of string changing we designed a new mechanism keeping the loosened screw in place even when it is completely unfastened.
• To remove the Toplocking screw entirely from the string post just pull it off firmly. To put the screw back on just turn clockwise and tighten lightly.

technical specification

gear ratio 1:18, weight button metal small/large 39g/41g, Perloid 33g/34g, Ebony 34g/35g, Galalith 34g/35, Polybone 34g/35g per piece, drill hole button: diameter 4.2 mm with driving surface 3.6 mm
